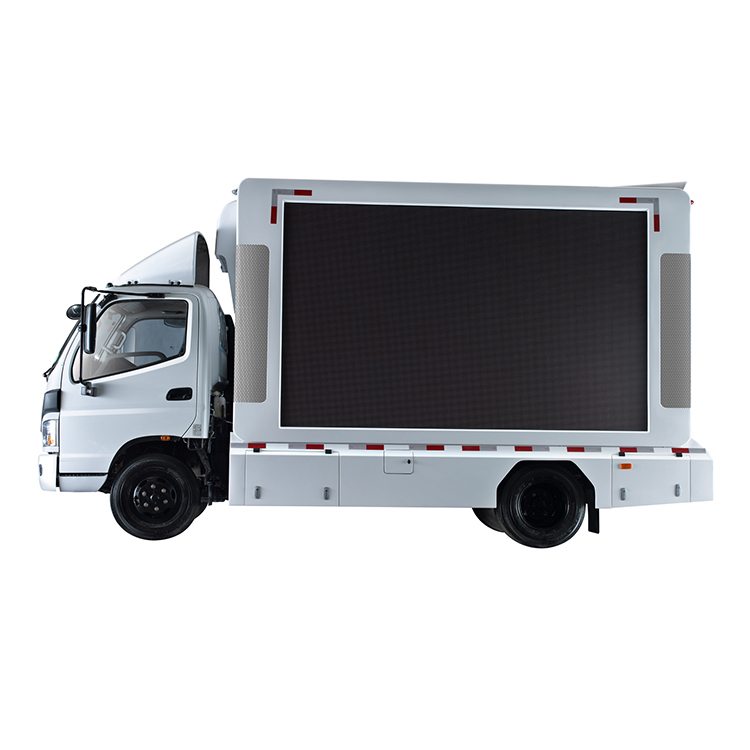

Factory-direct 6m LED Mobile Truck - Foton Aumark For Effective Outdoor Advertising

JCT 6m LED MOBILE TRUCK - Foton Aumark（Model：E-W3360） is modified with Foton Aumark chassis and LED outdoor full-color energy-saving screen. The truck body of the E-W3360 LED MOBILE TRUCK is less than 6 meters, it can be licensed and driven. After the chassis design of small vehicle is registered and licensed, it can move freely in the city without the negative impact of road rushing and road blocking. Jingchuan E-W3360 LED MOBILE TRUCK is equipped with a multimedia playback system, supports U disk playback, and supports mainstream video format. It has become an advertising terminal that can move freely, change information, communication strategies and locations at any time. It plays a important role in product promotion and attracts customers. It is a new advertisement communication carrier that integrates advertising, information release, and live broadcast. It is the first choice for users to promote.Smaller and more delicate, but not simpler Although a smaller and compact small truck chassis is adopted, 100% of the media platforms are inherited from the larger truck: 6.2m2 LED full color screen, single red strip screen, roller light box, flexible and convenient.Function optimization is people-oriented 6m LED MOBILE TRUCK adopts new built-in media optimization control system, which is more convenient for maintenance and operation; Double open side door, movable ladders and other humanized design, plus the layout of the electrical system optimization, make it more reasonable and safe, easy to use.Break through the control, City dedicated After the chassis design of small vehicle is registered and licensed, it can move freely in the city without the negative impact of road rushing and road blocking. It truly realizes the accompanying advertisements and goes deep into every corner of the city.Eu standard, low carbon environmental protection In line with international standards, the truck chassis that meets Euro EuroⅤ/Euro Ⅵ emission standards is adopted uniformly, which can save energy, reduce emission, and reduce environmental restrictions. Parameter specification (standard) 1. Overall size: 5995*2190*3300mm 2. LED outdoor full-color display screen (P6) size: 3520*1920mm 3. Right outdoor single red display screen (P10) size: 3520*320mm 4. Rear single red outdoor display screen (P10) size: 1280*1440mm 5. Equipped with digital roller system, it can play 1-4 static advertisement images in a loop. 6. Power consumption (average consumption) : 0.3 / m/H, total average consumption. 7. Equipped with front-end video processing system for live broadcast or rebroadcast and ball games, there are 8 channels, and the screen can be switched at will. 8. The intelligent timing power on system can turn on or off the LED screen. 9, equipped with multimedia playback system, support U disk playback, support mainstream video format. 10. Equipped with ultra-quiet generator set, power 8KW. 11. Input voltage is 220V, starting current is 25A.

Model	E-W3360（6m LED MOBILE TRUCK-Foton Aumark）
Chassis
Brand	Fonton Aumark	External Dimension		5995mm2190mm3300mm
Power	Cummins	Total Weight		4495KG
Emission Standard	EuroⅤ/Euro Ⅵ	Curb weight		4250KG
Wheel base	3360mm	Seat		Single row 3seats
LED Screen
Screen Size	3200*1920mm	Dot Pitch		P3/P4/P5/P6
Lifespan	100,000hours
LED bar screen
Side led Screen Size	3200mm*320mm	Rear led Screen Size		1280mm*1440mm
Dot Pitch	10 mm	Brightness		≥5000cd/ m²
Lifespan	100,000hours
Roller light box
Canvas size	3100mm*1500mm	Roller Diameter		75 mm
Motor Power	≥60W	Control modes		Intelligent remote
Silent Generator Group
Power	8KW
Number ofcylinders	Water-cooled inline 4-cylinder
Power parameter
Input Voltage	220V	Output Voltage		220V
Current	30A	Average power consumption		0.5kwh/㎡
Multimedia Control System
Monitor	Support 8-way signal input
Media player	with various kinds of common used video connector, be available for PC, camera and etc.
Sound	120W		Speaker	200W
