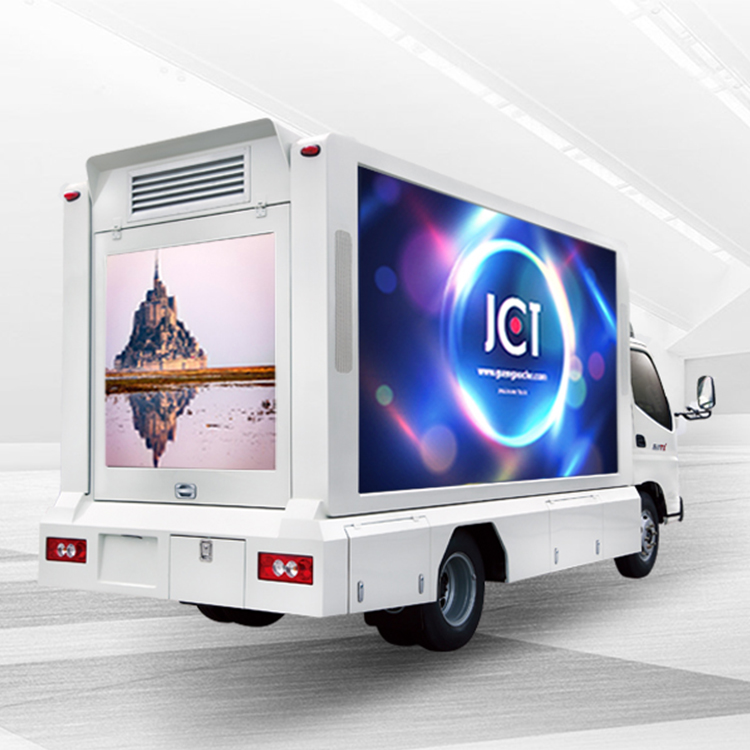

JCT 6m mobile LED truck（Model：E-AL3360）adopts special truck chassis of Foton Ollin and the overall vehicle size is 5995*2130*3190mm. Blue C driving card is qualified for it because the whole vehicle length is less than 6 m. E-AL3360 mobile LED truck can be choosed to be equipped with single-sided or double-sided large outdoor full-color LED screens with screen size up to 3520 * 1760mm which can be lifted on one or both sides. Automatic hydraulic stages can also be equipped, the LED truck will become a moving stage truck when stages unfold. JCT 6m mobile LED truck has multimedia system that supports U disk playing and mainstream video formats.
Product technical parameters 1. Overall size: 5995*2130*3190mm; 2. LED outdoor full color screen (P6) size: 3520*1920mm; 3. Right outdoor single red screen (P10) size: 3520*320mm; 4. Rear outdoor single red screen (P10) size: 1280*1440mm; 5. Equipped with digital roller system, which can play 3-6 static AD images in a loop; 6. Power consumption (average consumption) : 0.5/m2/H, total average consumption; 7. Equipped with a video processor that supports U disk playback, mainstream video format and mobile phone synchronous playback; 8. Equipped with ultra-silent generator set, power 8KW; 9. Input voltage 220V, starting current 25A.| Model | E-AL3360（6m mobile LED truck-Foton Ollin） | ||||
| Chassis | |||||
| Brand | Foton Ollin | External Dimension | 5995*2130*3190mm | ||
| Power | Foton | Total Weight | 4495KG | ||
| Emission Standard | EuroⅤ/Euro Ⅵ | Curb weight | 4365KG | ||
| Wheel base | 3360mm | Seat | Single row 3seats | ||
| Silent Generator Group | |||||
| Power | 8KW | Number of cylinders | Water-cooled inline 4-cylinder | ||
| LED Screen | |||||
| Screen Size | 3520 x 1920mm | Dot Pitch | P3/P4/P5/P6 | ||
| Lifespan | 100,000hours | ||||
| LED Bar Screen | |||||
| Side led Screen Size | 3520mm x 320mm | Rear led Screen Size | 1280 x 1440mm | ||
| Dot Pitch | 10 mm | Brightness | ≥5000cd/ m2 | ||
| Lifespan | 100,000hours | ||||
| Roller Light Box | |||||
| Canvas size | 3300mm x 1450mm | Roller Diameter | 75 mm | ||
| Motor Power | ≥60W | Control modes | Intelligent remote | ||
| Power Parameter | |||||
| Input Voltage | 220V | Output Voltage | 220V | ||
| Current | 20A | ||||
| Multimedia Control System | |||||
| Video Processor | Novastar | Model | V900 | ||
| Speaker | 100W*2pcs | Power Amplifier | 250W | ||
