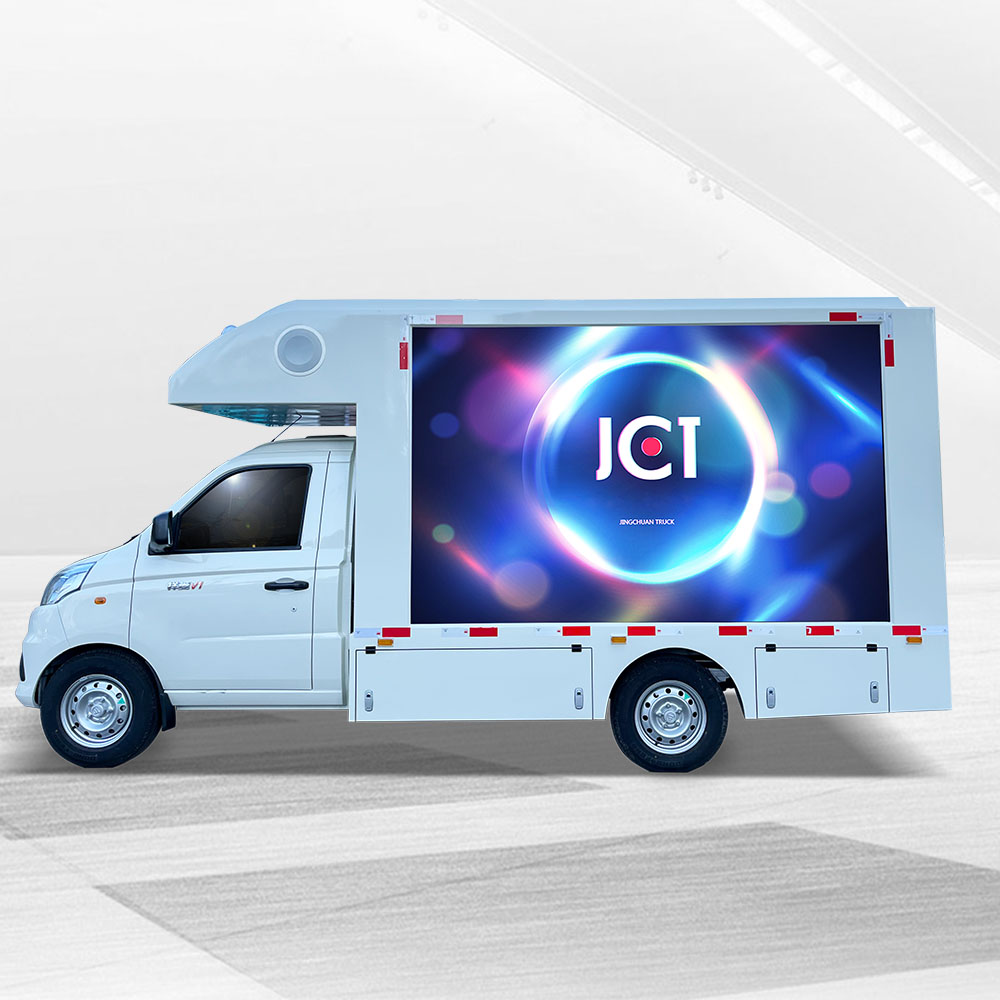

Get Noticed With E-XL3070 Advertising LED Truck

JCT launched a new E-XL3070 advertising officially on the market, this small advertising led truck uses Foton Shixiang LING V to do the chassis, 3070mm wheelbase to make the whole body more compact, smooth, national sixth emission standards, in line with the national vehicle requirements announcement. E-XL3070 advertising led truck is equipped with locomotive power generator inside the truck, and can also be connected to 220V external power supply. There are two power supply modes, no matter how long the operation time is, there is no fear; Tailored, according to customer requirements, customized production of single-screen advertising led truck or three-screen advertising led truck, a variety of choices to meet diverse needs. Groundbreaking cab integration design E-XL3070 advertising integrates media and electrical terminals into the cab of the vehicle to further optimize the operating experience so that all operations can be done from the cab. Unique configuration for cruise Fully optimize the playback effect and energy consumption ratio, control the LED screen at a reasonable size, can effectively prolong the working hours; And optional protective cover, further protect the product in outdoor and severe weather conditions of normal use. Break through restricted city use The chassis design of small models enables it to move freely in the city after registration and registration, without the negative impact of road hijacking and blocking. The real implementation of advertising with broadcast, deep into every corner of the city. Eu standards low carbon environmental protection In line with international standards, the unified adoption of car chassis in line with national six emission standards, energy saving and emission reduction, environmental protection and green, reduce activity environment restrictions. Parameter Description (Standard configuration) 1, overall size: 5180x1710x2640mm 2. Double-sided LED outdoor full-color display (P5) Size: 2560x1600mm 3. Rear outdoor full-color display (P5) Size: 960x1440mm 4, power consumption (average consumption) : 0.3 degree/m² / H, total consumption. 5, equipped with multimedia player system, support U disk play, support mainstream video format, mobile phone synchronous play. Equipped with 28V150AH generator, 2 12V250AH batteries 6, input voltage 220V, starting current 15A.

Model	E-XL3070 advertising led truck
Special truck chassis
brand	Foton Times Xiangling V	Overall dimension	5180×1710mm×2640mm
engine type	DAM15KR	curb weight	2415KG
emission standard	national six	total mass	2545KG
seat	Single row 3	wheel base	3070mm
Mute generator set
power	5KW	number of cylinders	Inline 4 cylinder water cooled
LED full-color display on the right side
size	2560×1600mm	dot pitch	P3/P4/P5/P6
Rear LED single red display
size	960×1440mm	dot pitch	10 mm
Roller canvas
The canvas number	4-6pcs	size	2500×1500mm
motor power	≥60W	control mode	Intelligent remote control
power supply
input voltage	220V	output voltage	220V
current	15A	power dissipation	average current drain：0.3wh/m²
Multimedia Player System (optional)
video processor	8 channels video signal input, 4 channels output, video seamless switching
multimedia player	Usb flash drive to play, support mainstream video, picture format. It Can be extended to achieve remote playback, timing, interstition, circulation and other playback modes. And supports remote control volume, timing switch and other functions.
Outdoor stereo	80W	Amplifier	250W

E-XL3070 advertising led truck
