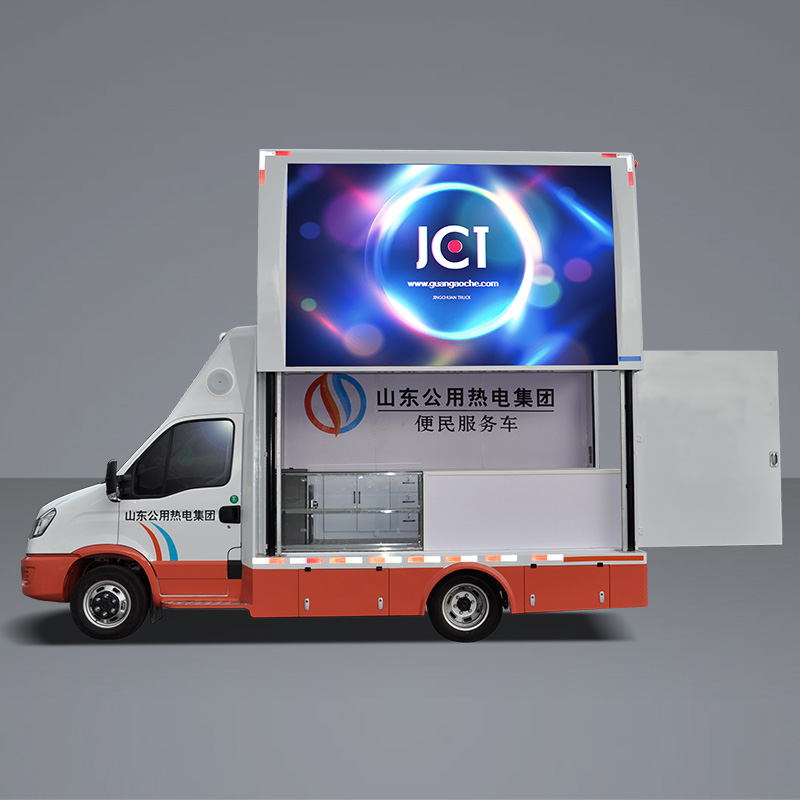

6M MOBILE LED TRUCK-IVECO

JCT 6M MOBILE LED TRUCK-IVECO (Model:E-YWK3300)adopts IVECO chassis; the overall dimensions of the truck: 5995 * 2200 * 3200 mm; the national standard emission: National Ⅴ/Ⅵ. The carriage is equipped with sofa, tables and chairs, fireproof panels, patterned aluminum floor, brand LCD TV and customized stage

Products Details

More and more enterprises have incorporated "services to people's livelihood projects" into their key tasks, such as energy and thermal power companies, water plants and other enterprises that are related to people's food, clothing, housing and transportation. JCT 3.8M MOBILE LED TRUCK-IVECO (Model:E-YWK3300) can cooperate with enterprises to carry out various publicity activities. Entering the community and doing local promotion. Let you timely grasp the social dynamics and business information. The emergence of LED service publicity vehicles has greatly improved the image of enterprise. It is different from the previous publicity form. There have LED service publicity vehicles to escort you, and you will get good returns once and for all.Fully automatic hydraulic stage JCT 3.8M MOBILE LED TRUCK equipped with a fully automatic hydraulic stage. After the stage is unfolded, it becomes a mobile stage truck. It can install stages, shelves and other special equipment for different activities, or provide personalized transformation and car body coating services for promotion projects to make it more suitable for promotion themes.JCT 3.8M MOBILE LED TRUCK-IVECO (Model:E-YWK3300)adopts IVECO chassis; the overall dimensions of the truck: 5995 * 2145 * 3200 mm; the national standard emission: EuroⅥ. The carriage is equipped with sofa, tables and chairs, fireproof panels, patterned aluminum floor, brand LCD TV and customized stage. A "Shiny Truck" that integrates business reception, stage performance, outdoor promotion and other urban promotion needs. "One truck with multiple functions and multiple configurations" have become the two attractive features of JCT 3.8M MOBILE LED TRUCK.Truck decoration The 3.8m mobile LED truck carriage is equipped with sofa, tables and chairs, fireproof panels, patterned aluminum floor, brand LCD TV and customized stage. A "Shiny Truck" that integrates business reception, stage performance, outdoor promotion and other urban promotion needs. Parameter specification (Standard configuration) 1. Overall dimensions: 5995×2145×3200mm 2. Left outdoor full-color display screen (P3/P4/P5/P6) size: 3072×1920mm 3. Power consumption (average consumption) : 0.3 / m/H, total average consumption. 4. The intelligent timing power on system can turn on or off the LED screen. 5. Equipped with multimedia playback system, support usb flash drive and mainstream video format. 6. Equipped with ultra-quiet generator set, power of 12KW. 7. Input voltage 220V.
Model E-YWK3300(3.8m mobile LED truck-IVECO

Chassis

Brand Iveco External Dimension 5995×2145×3200mm
Wheel base 3300mm Emission Standard EuroⅥ

Silent Generator Group

Power 12KW Number of cylinders Water-cooled inline 4-cylinder

LED Screen

Screen Size 3072×1920mm Dot Pitch P3/P4/P5/P6
Lifespan 100,000hours

Power parameter

Input Voltage 220V Output Voltage 220V
Current 20A Average power consumption 0.3kwh/㎡
Multimedia Control System
Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.
Sound 120W Speaker 200W
Reception room
Reception room Sofa,Tea table,Bar counter...
Stage Combined outdoor stage,can piacing in the container after folding
Multimedia playback system The 3.8m mobile LED truck adopts a new built-in media optimization control system, which supports U disk playback and mainstream video format. It is equipped with a front-end video processing system for live broadcast or rebroadcasting. It has 8 channels and can switch pictures at will.
