JCT 4.2M LED STAGE TRUCK-Foton Ollin

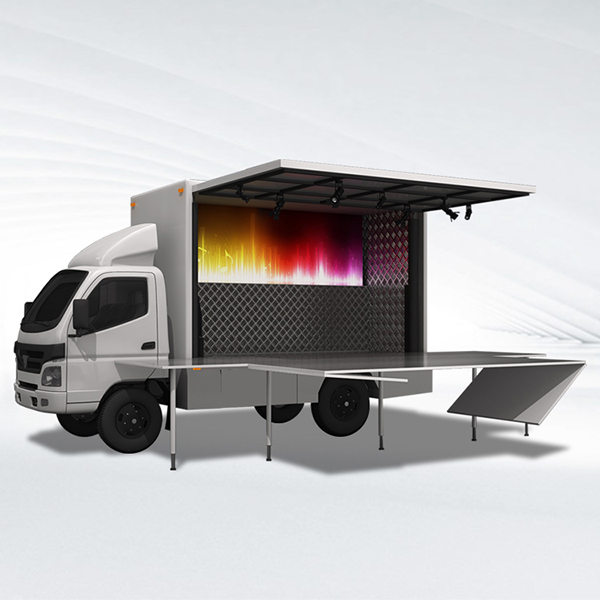

The 4.2m led stage truck(Model:E-WT4200) produced by JCT company uses Foton Ollin special chassis. Its overall size is 5995*2090*3260mm and blue card C1 licensing is qualified to drive it.

Products Details

The 4.2m led stage truck(Model:E-WT4200 produced by JCT company uses Foton Ollin special chassis. Its overall size is 5995*2090*3260mm and blue card C1 licensing is qualified to drive it. The truck is equipped with outdoor LED screen, full-automatic hydraulic stage and professional audio and lighting system. We pre-install all shop function forms in the container, and modify them based on activities to optimize the internal space. It avoids defects of time-consuming and labor-consuming of traditional stage structures. Its efficiency and effectiveness can combine with other marketing communication means to make a better results.

Product parameter description 1. Overall vehicle size: 5995*2090*3260mm; 2. P6 full-color LED screen size: 3520*1920mm; 3. Power consumption (average consumption) : 0.3/m2/H, total average consumption; 4. Equipped with professional stage audio and multimedia playback equipment, and equipped with image processing system, can simultaneously point out 8 signal input, one-button switch; 5. The intelligent timing power on system can turn on or off the LED screen; 6. Equipped with performance stage with an area of 5200x3000mm; 7. Equipped with lifting cylinder of roof panel and side panel, LED display lifting cylinder and stage turning cylinder; 8. Equipped with 8KW diesel ultra-quiet generator set, it can generate electricity spontaneously in places without external power supply. 9. Input voltage 220V, working voltage 220V, starting current 15A.
Model E-WT42004.2M LED STAGE TRUCK

Chassis

Brand Foton Ollin External Dimension 5995*2090* 3260mm
Carriages size 4200*2090*2260mm Wheel base 3360mm
Emission Standard EuroⅤ/Euro Ⅵ Seat Single row 3seats

Silent Generator Group

Power 8KW Number of cylinders Water-cooled inline 4-cylinder

LED Screen

Screen Size 3520 x 1920mm Dot Pitch P3/P4/P5/P6
Lifespan 100,000hours

Hydraulic Lifting and Supporting System

LED Screen Hydraulic Lifting System Lifting Range 1500mm
The car plate Hydraulic Lifting System customized
Hydraulic Light support customized
Stage, bracket etc customized

Power parameter

Input Voltage 220V Output Voltage 220V
Current 15A

Multimedia Control System

Video processor Nova Model V900
Power amplifier 250W Speaker 100W*2pcs

Stage

Dimension 5200*3000mm
Type Combined outdoor stage,can piacing in the container after folding
Remark: the multimedia hardware can choose optional effect accessories, microphone, dimming machine, mixer, karaoke jukebox, foaming agent, subwoofer, spray, air box, lighting, floor decoration etc.
