All forms of activity performances are pre-installed in the container. It is easy to operate and display all kinds of activities at specified locations such as large terminal sales promotion, brand image promotion, large culture tour, mobile exhibition, mobile cinema, etc. It overcomes the time and location limit to make everything possible.

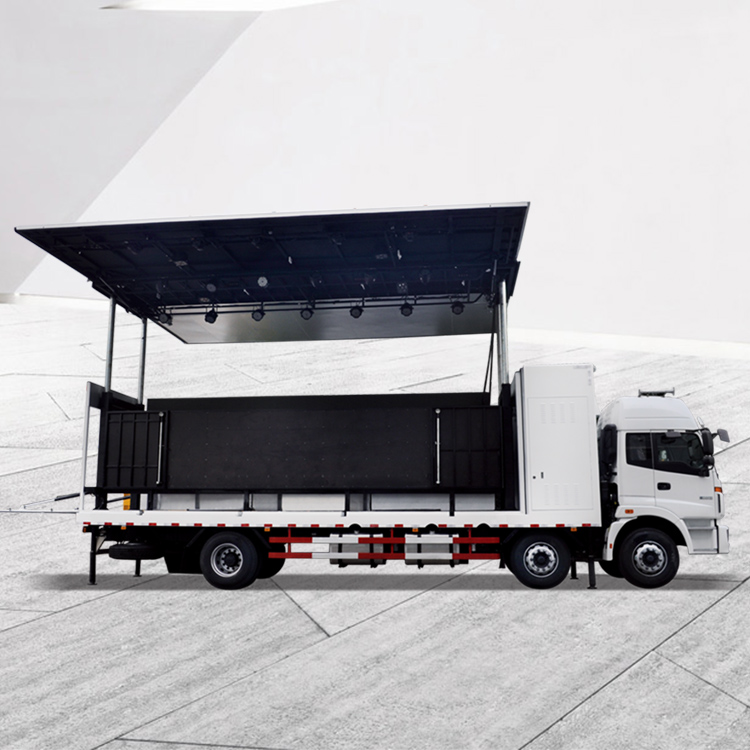

Sophisticated integration and efficient execution Instead of single media broadcast and loading, the new cutting-edge integrated design concept makes modifications according to characteristics of activities to optimize internal spaces. It avoids defects of time-consuming and labor-consuming of traditional stage structures. Its efficiency and effectiveness can combine with other marketing communication means to make a better results. For example, led container can be equipped with professional TV and entertainment equipments, or can be modified into a brand theme store according to the needs of customers.| Model | E-WT9600（9.6M LED STAGE TRUCK） | |||
| Chassis | ||||
| Brand | Foton Aumark | External size | 11995*2550*3980mm | |
| Power | Weichai | Total Weight | 20005KG | |
| Emission Standard | EuroⅤ/Euro Ⅵ | Curb weight | 19000KG | |
| Hydraulic Lifting and Supporting System | ||||
| LED Screen Hydraulic Lifting System | Lifting Range 1500mm | |||
| Hydraulic Folding System | Screen can fold 90 degrees | |||
| The car plate Hydraulic Lifting System | customized | |||
| Hydraulic Light support | customized | |||
| Stage, bracket etc | customized | |||
| Silent Generator Group | ||||
| Power | 16KW | Number of cylinders | Water-cooled inline 4-cylinder | |
| LED Screen | ||||
| Screen Size | 7360mm(W)*2400mm(H) | Dot Pitch | P3/P4/P5/P6 | |
| Power parameter | ||||
| Input Voltage | 3 phases 5 wires 380V | Output Voltage | 220V | |
| Current | 30A | |||
| Multimedia Control System | ||||
| Video Processor | Nova | Model | V900 | |
| Power amplifier | 1500W | Speaker | 200W*4pcs | |
| Stage | ||||
| Dimension | 5200mmx3000mm | |||
| Type | Combined outdoor stage,can piacing in the container after folding | |||
| Remark: the multimedia hardware can choose optional effect accessories, microphone, dimming machine, mixer, karaoke jukebox, foaming agent, subwoofer, spray, air box, lighting, floor decoration etc. | ||||
